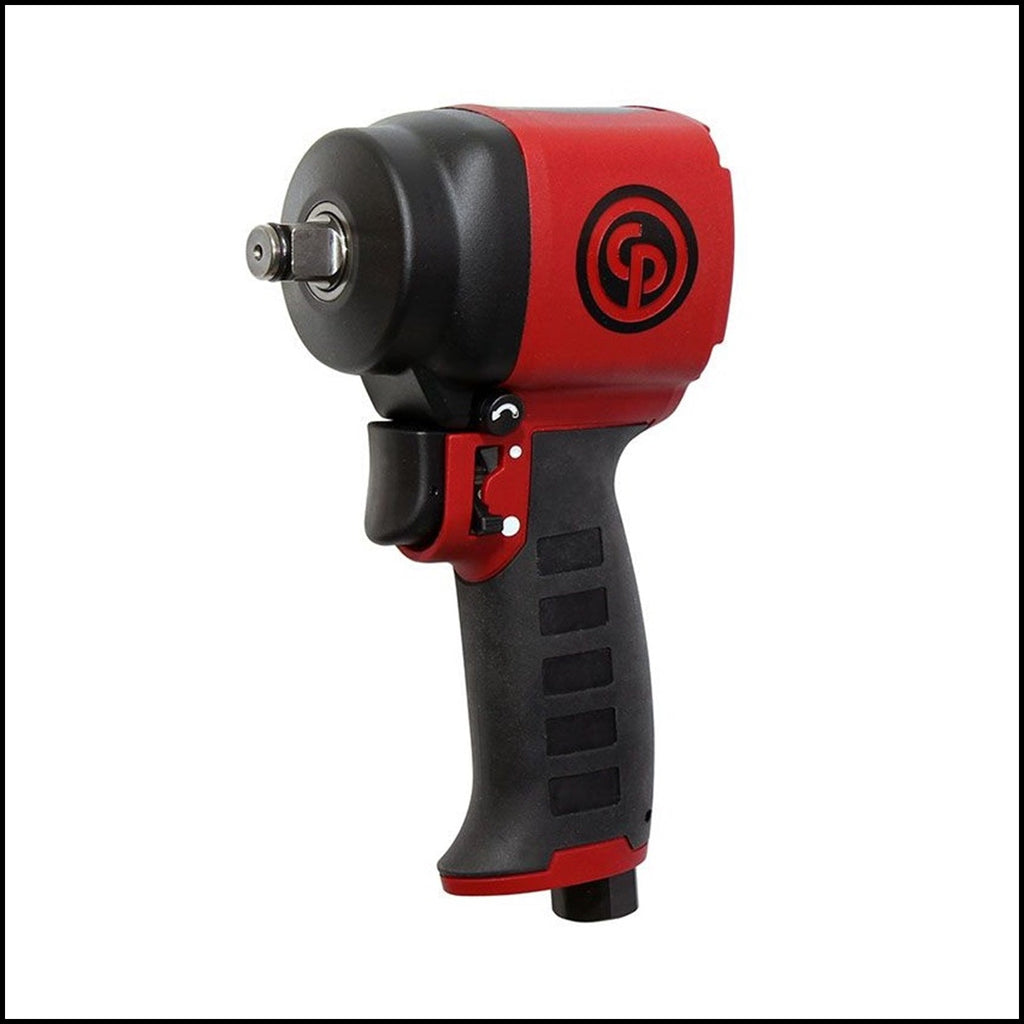

CHICAGO PNEUMATIC CP7732C 1/2" PNEUMATIC IMPACT WRENCH SPECIFIC FOR WORKSHOPS

Benefits;
- Ultra light
- Easy to use
- Compact
- Powerful
- Durable
Characteristics;
- 2.1 lbs. – 1.0 Kg
- 460 ft.lbs - 625 Nm of maximum torque in reverse
- 4 1/4 in – 108 mm long
- Jumbo hammer mechanism
- steel engine
Aluminum clutch bell
Composite housing with curved grip with injected thermoplastic rubber
S2S: One-handed steering operation
New power setting system:
one-handed operation behind the trigger
- 2 reverse positions: high and low torque
- 2 forward positions: high and low torque
- Compass safety ring
- Progressive trigger
Model CP7732C
Item code 8941077321
Sealing ring Compass Clutch ring
1/2" square drive
Strokes per minute 1400
Air consumption at free speed 14.6 l/s
Actual air consumption 10.2 l/s 22 cfm
Average air consumption 2.6 l/s 5 1/2 cfm
Maximum torque in unscrewing 625 Nm 460 ft/lbs
Air connection size 1/4 in.
Minimum tube size 10mm 3/8"
Box size 175*202*75 mm
Minimum wheelbase 32 mm 1.26 "
Working torque range in screwing 70 - 387 Nm 52 - 285 ft/lbs
Noise level ISO15744 95.5 db(A)
Noise level ISO15744 106.5 db(A)
Length 108mm 4.3"
Weight 1 Kg 2.2 lb
European Standards EN ISO 11148-6:2013
Jumbo clutch type
Grip type Pistol
Free speed 9410 rpm
Vibrations 10.8 m/s²
Vibration - ISO ISO-28927-2
Vibrations K 1.42 m/s²
